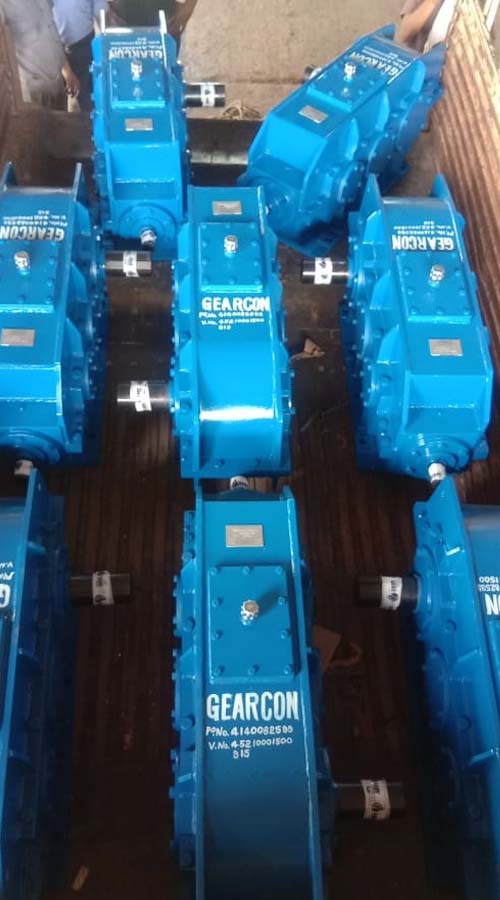

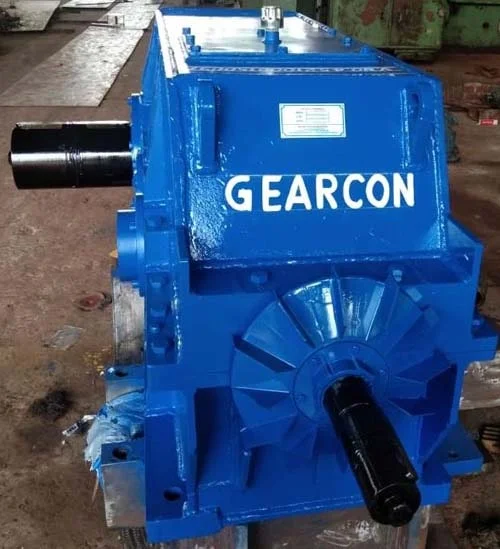

GEARBOXES

  • The gearbox is a mechanical method of transferring energy from one device to another and is used to increase torque while reducing speed.
  • The gears inside of a gearbox can be any of the types: helical, spur or worm gears. The gears are mounted on shafts, which are supported by and rotate via rolling element bearings.
  • The body is made of fabricated steel body or Cast iron.
  • Size range from 125 mm to 1500 mm centre distance.
  • Range of reduction ratio is from 1:5 to 1:200.
  • It is equipped with spherical roller bearings, oil seals and gears precisely cut on hobbing machines.
  • The gears are further finished in GEAR GRINDING MACHINE for smooth running.
